Glavanized Steel C Profile Roll Forming Machine 0.8-1.5mm 100mm 150mm Drywall For Ceilling System

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Thickness : 0.8-1.5mm galvanized steel coil

Stations : 13 Rollers

Motor power : 7.5Kw

hydraulic cutting power : 4Kw

Machine size : 5500mm *800mm * 1200mm

Material of cutting : Cr12Mov with quench HRC58-62°

Transmission : Single Chain

Width : 100mm and 150mm

Contact Now

0.8-1.5mm Glavanized Steel 100mm 150mm Drywall C Profile Roll Forming Machine For Ceilling System

1. Technical Parameter

NO.
Item
Specification
Material
Raw material
Galvanized steel
Thickness
0.8 -1.5mm
Machine
Roller station
13
Shaft diameter
60 mm
Solid shaft material
High grade 45# steel with Cr12 mov coated,
quenching & tempering & treatment
Roller material hardness
Gcr15 50-55HRC
Machine size
About 5.5*0.8*1.0m
Machine weight
About 3.5 tons
Machine color
As customer need
Working speed
8-12m/min
Cutter
Hardness
50-65 HRC
Cutting tolerance
± 1mm
Material
Cr12
Operate
Hydraulic cutting
Power
Driving way
Chain 1 inch
Main motor
4 KW
Pump motor for cutter
3 KW
Voltage
380V/50HZ, 3P or Customized as customer' request
Control system
PLC brand
Delta made in Taiwan
Screen
Touchable screen
Language
Chinese and English or add customer need language
Decoiler
Operation
Manual
Weight capacity
3 Tons
Price
Free as gift
Receive table
Operation
Manual
Length
3 m

2. Machine Components

3Tdecoiler 1 set
Hydraulic Cutting device 1 set
Main roll forming machine 1 set
Control box system 1 unit
Out tables 2 units
Tool box 1 package

3. Features of the production line

1) Directly input the data on the touchable screen, it is easy operation.

2) Automatically continually manufactures high quality product with PLC.

3) Saving time and cost owing to high speed running with hydraulic system.

4) Professional designing for manufactures roofing & walling

5) Customers decide the profile of products.

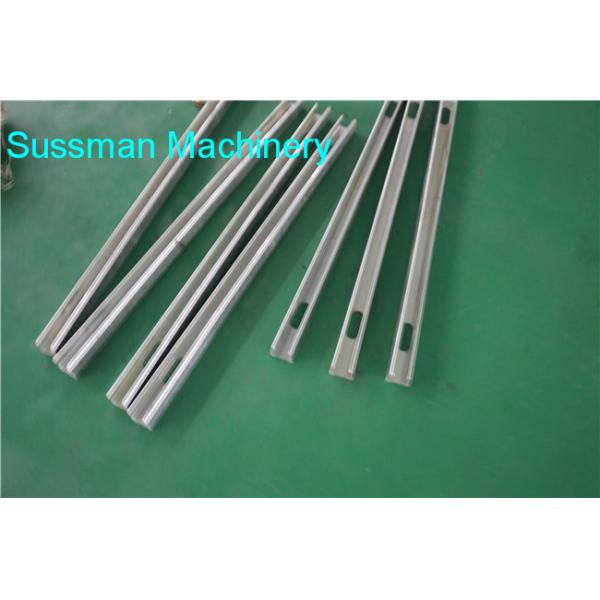

4. Application

Are used as the vertical support in drylining, available in a range of widths, lengths and thicknesses dependant upon the walls requirements for strength, height, impact resistance and sound insulation.

Glavanized Steel C Profile Roll Forming Machine 0.8-1.5mm 100mm 150mm Drywall For Ceilling System

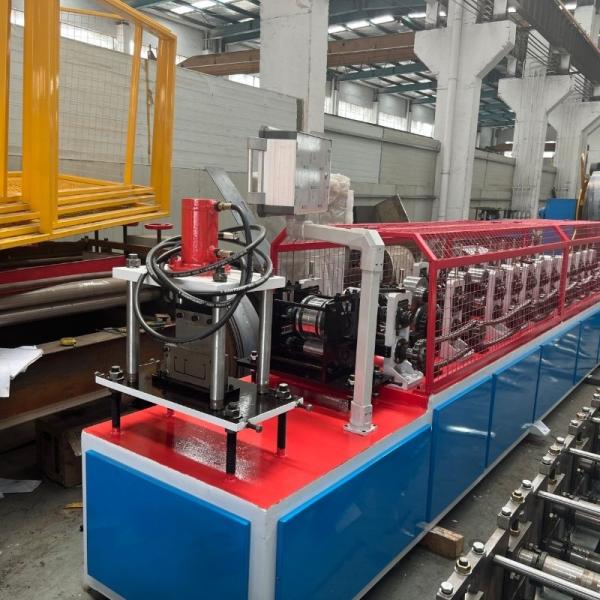

5. Machine picture

Glavanized Steel C Profile Roll Forming Machine 0.8-1.5mm 100mm 150mm Drywall For Ceilling System
