380V 50HZ 3 Phase Stud Roll Forming Equipment 13 Station Forming With Embossing

Name: 380V 50HZ 3 Phase Stud Roll Forming Equipment 13 Station Forming With Embossing
Brand: Sussman
Price: 1 USD

China 380V 50HZ 3 Phase Stud Roll Forming Equipment 13 Station Forming With Embossing wholesale

Brand Name : Sussman

Certification : CE,SGS,ISO

Place of Origin : Wuxi China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 Set per month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Model Number : RF-DF

Stands : 13 Stands

Decoiler : 3 Ton

Weight : 3 Tons

Main motor power : 5.5KW

Speed : 10-12m/min

Overall size : 6500x600x800mm

Contact Now

380V, 50HZ, 3 Phase Stud Roll Forming Machine 13 Station Forming with Embossing

Stud Roll Forming Machine

Machine list	3 ton passive de-coiler	1 set
	Punching device	1 set
	Main roll forming machine	1 set
	Cutting device	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Out table	2 units
	Total

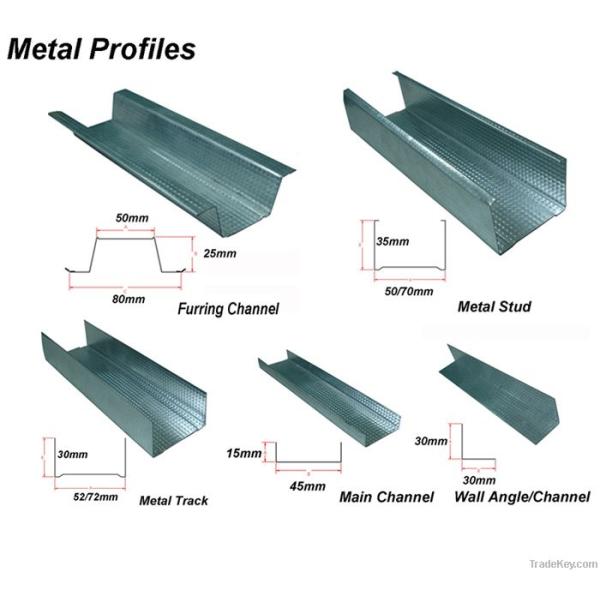

Profile

380V 50HZ 3 Phase Stud Roll Forming Equipment 13 Station Forming With Embossing

Technological process

Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

380V 50HZ 3 Phase Stud Roll Forming Equipment 13 Station Forming With Embossing

The external of machine:

	Items	Specifications	Remarks
Material of coil	Material Thickness	0.3-1.2 mm galvanized steel
De-coiler	Weight	3 ton manual
Forming system	Rolling Speed	10-12 m/min
	embossing	1 set of rolls
	Roller Stations	About 13 stations forming, 1 set of rolls for embossing
	Roller Material	Cr40 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Maim Motor Power	5.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ,3 phase
Electrical control system	Control System	PLC Japanese Panasonic and Yaskawa Brand
	Weight	About 3 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 6500mm* Width 600mm* Height 800m

Picture drawing

380V 50HZ 3 Phase Stud Roll Forming Equipment 13 Station Forming With Embossing

Spare parts

380V 50HZ 3 Phase Stud Roll Forming Equipment 13 Station Forming With Embossing

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4)Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
